- Product Description
-
- Commodity name: GX501
Product model: GX501 Product Brand: GAOXU
Product parameter table
Product name: portable energy storage power supply
Product model: GX501
Product Brand: GAOXU
1.Product overview:
This product is a portable energy storage power supply (multifunctional backup power supply, outdoor power supply, hereinafter referred to as this product) is mainly composed of battery pack module, inverter module, DC input/output module, battery pack management system module, fuse module, etc. The battery pack module is a high-efficiency power battery, which has the characteristics of stable safety, low energy consumption for charging and discharging, and long service life, ensuring product safety and durability. The inverter module adopts pure sine wave inverter to ensure the stability and compatibility of the AC output. The information exchange between the DC input/output module and the battery pack management system module maximizes the charging and discharging efficiency of this product. The fuse module acts as a secondary safety protection, making transportation and use safer.
The shell of this product is made of high-strength one-piece aluminum alloy shell, which has good impact resistance and heat dissipation. The front and rear plastic shells are fire-proof industrial plastic materials, which have the characteristics of high hardness and flame retardant. All interfaces are designed with dust-proof soft Plastic cover to better protect the interface from dust intrusion and oxidation.
The safety and reliability of this product have been repeatedly tested and verified by the company's R&D team for a long time. The input of this product can be charged by three charging methods: solar panels, adapters and car chargers. The output of this product supports 220V/110V, 12V, 5V, suitable for all kinds of electrical equipment below 500W.
2.Product application:
The application areas of this product include but are not limited to:
2.1. Outdoor applications: camping, fishing, RV, self-driving, outdoor work, yachting, adventure, lighting, etc.
2.2. Industrial applications: instrumentation, Apparatus, testing devices, data acquisition, etc.;
2.3. Household electricity applications: lighting, rice cookers, fans, computers, refrigerators, televisions, washing machines, etc.
2.4. Digital product applications: mobile phones, tablets, cameras, computers, printers, game consoles, learning machines, etc.
2.5. On-board equipment applications: Car refrigerators, Car kettles, Car air pumps, Car electric rice cookers, etc.
3.Product structure:
1.1.Product input and output interface:
1.AC output
2.AC indicator
3.LCD display screen
4.DC button
5.DC input
6.AC output
7.AC button
8. Cigar port
9.DC12V output
10.USB output
11. Fan
12. Fuse port
13.Spare fuse port

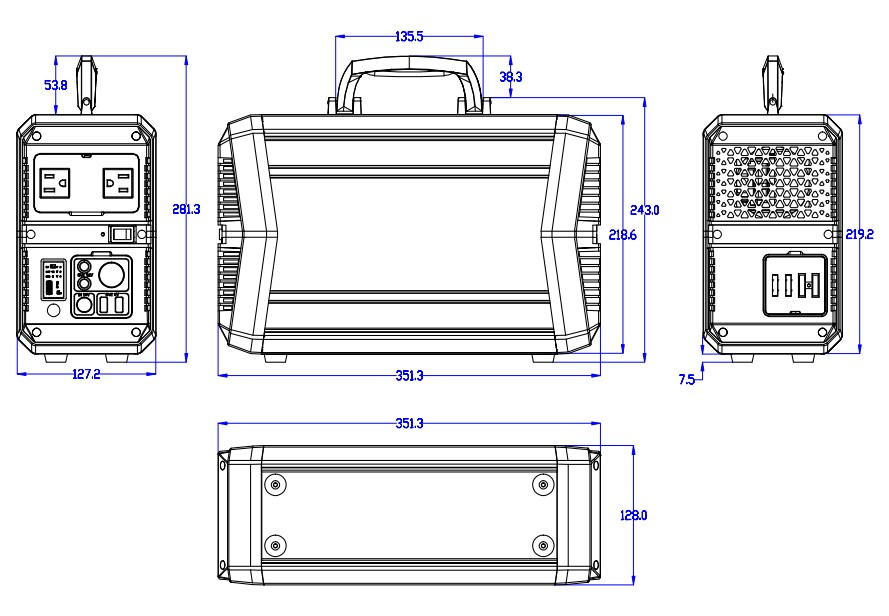

1.2.Product floor plan and size:
Length（mm）
Width(mm)
Height(mm)
Weight(Kg)
351.3
128
230
7.2
2.Product electrical characteristics:
No
electrical characteristics
parameter
1
Product input
Adapter
DC19V7.9A
Solar panel
21V-45V/8A
Car charger
32Vdc 2.5A 80W (MAX)
2
Product output
AC output
Output voltage
220V±3% 50Hz/110V±3% 60Hz
Lasting output
500W（Pure sine wave）
Peak values
1000W±3%
Harmonic distortion
＜5%
Conversion efficiency
≥85%
Output ripple
≤200mV
DC 12V output
2×DC5521
12Vdc 10A 120W（MAX）
1×Cigarette lighter
Conversion efficiency
≥86%
DC 5V output
2×USB
5Vdc 3A (MAX)
Conversion efficiency
≥86%
3
battery cell
battery capacity
22.4V/48Ah/ (3.2V 336000mAh ) 1075Wh
battery
18650 Power Battery 4S×14P (56pcs)
Cycle life
800 cycles capacity≧80%
4
display
Power display
20% 40% 60% 80% 100%
5
Protective function
Overcharge protection
battery 16.8V
Over discharge protection
battery 12V
Overcurrent protection
AC
600W
12V
120W limiting
144W protection
5V
15.5W limiting
17W protection
Over temperature protection
45℃ Start the fan； 65℃ protection
Short circuit protection
—
Overvoltage protection
Input voltage 17.2Vdc
6
Static power
Static power consumption of the whole machine
≤200UA
7
Working environment
Temperature
-10℃～60℃
Humidity
45%-90%RH
8
Storage environment
Temperature
10℃～45℃
Humidity
50%-85%RH
