- Product Description
-
- Commodity name: GX1000
Product model: GX1000 Product Brand: GAOXU
Product parameter table

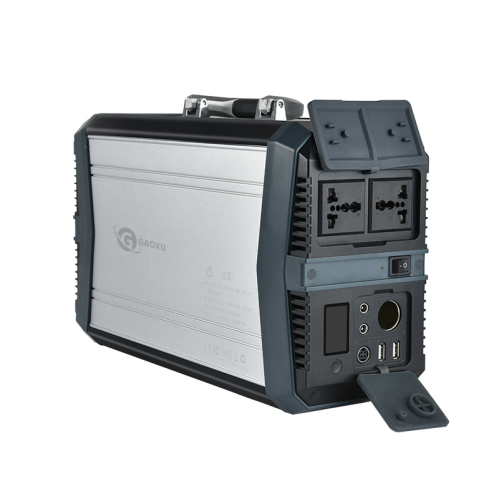

Product name: portable energy storage power supply
Product model: GX1000
Product Brand: GAOXU
1.Product overview:
This product is a portable energy storage power supply (multi-functional backup power supply), which is mainly composed of a battery pack module, an inverter module, a DC input/output module, a battery pack management system module, and a fuse module. The high-efficiency power battery of the battery pack module has the characteristics of stable safety, low energy consumption for charging and discharging, and long service life, ensuring product safety and durability. The inverter module adopts pure sine wave inverter to ensure the stability and compatibility of the AC output. The information exchange between the DC input and output module and the battery pack management system module maximizes the charging and discharging efficiency of this product. The fuse module acts as a secondary safety protection, making transportation and use safer.
The product shell adopts a high-strength aluminum alloy machine-formed shell, which has good impact resistance and heat dissipation performance. The front and rear plastic shells are fire-resistant industrial plastic materials, which have the characteristics of high hardness and flame retardant. All interfaces are designed with dust-proof soft rubber covers. , Better protection of interface dust intrusion and oxidation.
The safety and reliability of this product have been repeatedly tested and verified by the company's R&D team for a long time. The input of the product can be charged by solar panels, adapters, and car chargers to the portable energy storage power supply. The output of the product supports 220V/110V, 12V, and 5V. All kinds of electrical equipment below 1000W.
2.Product application:
The application areas of this product include but are not limited to:
2.1. Outdoor applications: camping, fishing, RV, self-driving, outdoor work, yachting, adventure, lighting, etc.
2.2. Industrial applications: instrumentation, Apparatus, testing devices, data acquisition, etc.;
2.3. Household electricity applications: lighting, rice cookers, fans, computers, refrigerators, televisions, washing machines, etc.
2.4. Digital product applications: mobile phones, tablets, cameras, computers, printers, game consoles, learning machines, etc.
2.5. On-board equipment applications: Car refrigerators, Car kettles, Car air pumps, Car electric rice cookers, etc.
3.Product structure:
3.1 Product input and output interface:
1.AC output*2
2.Display screen
3.DC button
4.AC button
5.AC work indicator
6.DC12V*2
7.USB5V*4
8.Charging input port
9.Handle
10.Fan
11.Spare fuse port
12.Fuse port
3.2 Product floor plan and size:
Length（mm）
Width(mm)
Height(mm)
Weight(Kg)
408
164
250
12.5
- Product electrical characteristics:
No
electrical characteristics
parameter
1
Product input
Adapter
32Vdc 7.5A 240W (MAX)
Solar panel
32Vdc～45Vdc 8A (MAX)
Car charger
32Vdc 2.5A 80W (MAX)
2
Product output
AC output
Output voltage
220V±3% 50Hz/110V±3% 60Hz
Lasting output
1000W（Pure sine wave）
Peak values
2000W±3%
Harmonic distortion
＜5%
Conversion efficiency
≥85%
Output ripple
≤200mV
DC 12V output
2×DC5521
12Vdc 10A 120W（MAX）
Conversion efficiency
≥86%
DC 5V output
4×USB
5Vdc 3A (MAX)
Conversion efficiency
≥86%
3
battery cell
battery capacity
25.9V 39Ah (3.7V 273000mAh)
battery
18650 Power Battery 4S×15P (105pcs)
Cycle life
800 cycles capacity≧80%
4
display
Power display
20% 40% 60% 80% 100%
5
Protective function
Overcharge protection
battery 29.4V
Over discharge protection
battery 21.0V
Overcurrent protection
AC
1200W
12V
120W limiting
144W protection
Over temperature protection
45℃ Start the fan； 65℃ protection
Short circuit protection
—
Overvoltage protection
Input voltage 46Vdc
6
Static power
Static power consumption of the whole machine
≤200UA
7
Working environment
Temperature
-10℃～45℃
Humidity
45%-90%RH
8
Storage environment
Temperature
10℃～40℃
Humidity
50%-85%RH
