- Product Description
-
- Commodity name: GX2500
Product model: GX2500 Product Brand: GAOXU
Product parameter table

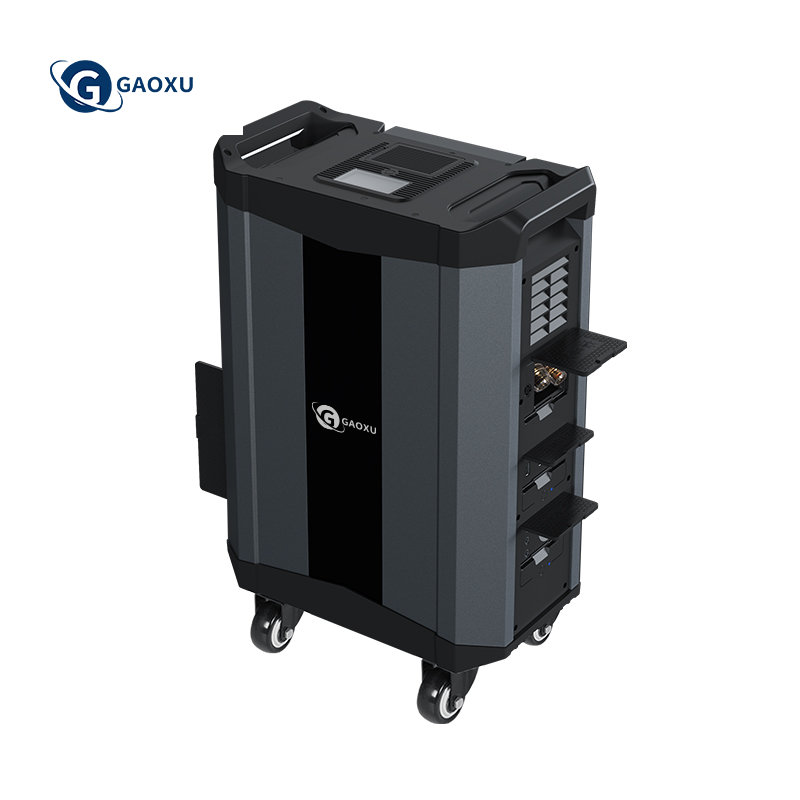

Product name: portable energy storage power supply
Product model: GX2500
Product Brand: GAOXU
1.Product overview:
This product is a portable energy storage power supply (multi-functional backup power supply), which is mainly composed of a battery pack module, an inverter module, a DC input/output module, a battery pack management system module, and a safety switch. The high-efficiency power battery of the battery pack module has the characteristics of stable safety, low energy consumption for charging and discharging, and long service life, ensuring product safety and durability. The inverter module adopts pure sine wave inverter to ensure the stability and compatibility of the AC output. The information exchange between the DC input and output module and the battery pack management system module maximizes the charging and discharging efficiency of this product. As a secondary safety protection, the safety protection switch makes transportation and use safer.
In order to ensure the safety of transportation, the safety switch of this product is turned off when it leaves the factory, and the internal capacity is at the lowest state. When using it, you need to open the safety switch first and fully charge it for backup!
The product shell is made of high-strength aluminum alloy shell, which has good impact resistance and heat dissipation performance. The plastic shell is a fire-resistant industrial plastic material, which has the characteristics of high hardness and flame retardant. All interfaces are designed with dust-proof covers to better protect the interface from dust. Invasion and Oxidation.
The safety and reliability of this product have been repeatedly tested and verified by the company's R&D team for a long time. The input of the product can be charged by solar panels and adapters to the portable energy storage power supply. The output of the product supports 220V/110V, 12V, and 5V. Class electrical equipment.
2.Product application:
The application fields of this product include but are not limited to:
2.1. Outdoor application: camping, fishing, RV, self-driving, outdoor work, yacht, adventure, lighting, etc;
2.2. Industrial application: instrumentation, instrumentation, testing device, data acquisition, etc;
2.3. Household electricity applications: lighting, rice cookers, fans, computers, refrigerators, TV sets, washing machines, etc;
2.4. Digital product applications: mobile phones, tablets, cameras, computers, printers, game consoles, learning machines, etc;
2.5. Car equipment application: car refrigerator, car kettle, car air pump, car rice cooker, etc.
3.Product structure:
1.1.Product input and output interface:
1.Fan
2.Solar input
3.Aviation interface
4.USB interface
5. USB button and indicator light
6.Cigar port
7.5521 interface
8.DC button
9.AC output 2000W
1.2.Product floor plan and size:
Length（mm）
Width(mm)
Height(mm)
Weight(Kg)
375
220
595
30.5
Product electrical characteristics:
No
electrical characteristics
parameter
1
Product input
Adapter
48Vdc 6.25A 300W (MAX)
Solar panel
45Vdc～80Vdc 500W (MAX)
2
Product output
AC output
Output voltage
220V±3% 50Hz/110V±3% 60Hz
Lasting output
2000W（Pure sine wave）
Peak values
4000W±3%
Harmonic distortion
＜5%
Conversion efficiency
≥87%
Output ripple
≤200mV
DC 12V output
3×DC5521
12Vdc 11A 130W（MAX）
1×Cigarette lighter
Conversion efficiency
≥85%
USB output
3×USB
5Vdc 3A (MAX)
Conversion efficiency
≥85%
3
battery cell
battery capacity
38.4V/65.5Ah (2515WH )
battery
IFR32135 LiFePO4 Battery 12S×4P (48 pieces）
Cycle life
2000 times cycle capacity≧80%
4
display
Power display
20% 40% 60% 80% 100%
5
Protective function
Overcharge protection
Battery 45V
Over discharge protection
Battery 25V
Overcurrent protection
AC
2200W
12V
130W current limiting
144W protection
5V
17.5W current limiting
20W protection
Over temperature protection
Start the fan at 45°C; protect at 65°C
Short circuit protection
Short circuit direct protection
Overvoltage protection
Input voltage≥80Vdc
6
Static power
Static power consumption of the whole machine
≤200UA
7
Working environment
Temperature
-10℃～45℃
Humidity
45%-90%RH
8
Storage environment
Temperature
10℃～40℃
Humidity
50%-85%RH
Key words:- GAOXU
